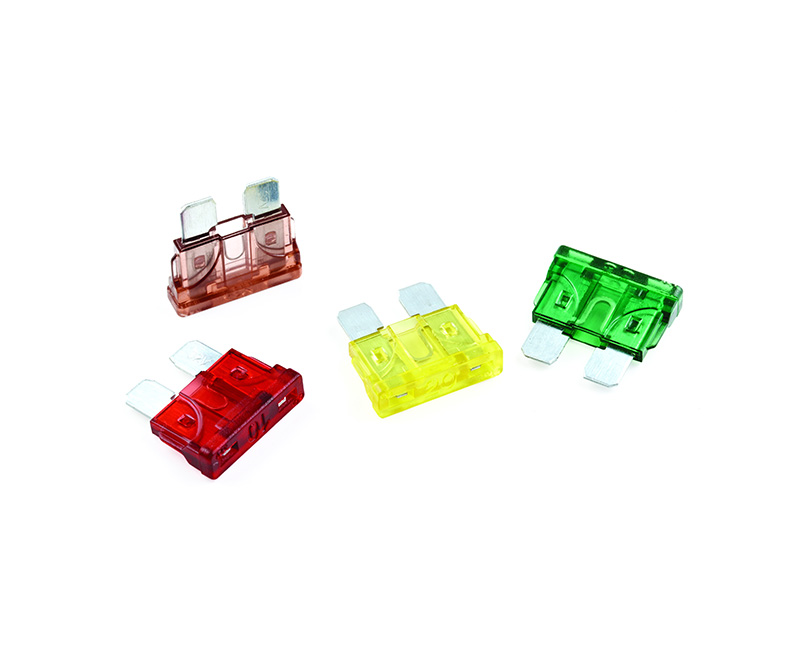

Designed and produced by XC Electronics, the blade fuses for autornotive industry is mainly used to protect equipment circuit lower than 32V.
● Design standard: Automotive industry Autofuse standard of Republic of China, OC/T420-2004
● Product Classification:
A: Mini type (F type) blade fuse (fast acting)
B: Medium type (C type) blade fuse (fast acting)
C: Maximum type (E type) blade fuse (slow-blow)
● Materials: PC resistance burnt material/ alloy terminal electrode.
● Color-coding: Blade fuses are color-coded for easy amperage identification.
● Application: Suitable for auto lighting, auto guard against theft, UPS etc. Also applied to low voltage electronic products, little transformer, electric toy, charger and so on.
| Testing current | Blow Time | |
| Min | Max | |
| 110% | 100 hours | - |
| 135% | 0.75 s | 1800 s |
| 200% | 0.15 s | 5 s |
| 350% | 0.08 s | 0.5 s |
● Pending
○ Approvals
| Type | Current Rating | Voltage Rating | Colour | Cold Resistance mΩ | Minimum Heat of Fusion I²t(A²Sec) | Approvals |
 | ||||||
| C1000302Z | 1 | 32 | Black | 22 | 2.3 | ○ |
| C2000302Z | 2 | 32 | Gray | 22 | 4.5 | ● |
| C3000302Z | 3 | 32 | Purple | 22 | 7.4 | ● |
| C4000302Z | 4 | 32 | Pink | 22 | 14 | ● |
| C5000302Z | 5 | 32 | Tan | 18 | 26 | ● |
| C7500302Z | 7.5 | 32 | Coffee | 11 | 60 | ● |
| C0010302Z | 10 | 32 | Red | 7.5 | 115 | ● |
| C0015302Z | 15 | 32 | Blue | 4 | 340 | ○ |
| C0020302Z | 20 | 32 | Yellow | 3.2 | 520 | ○ |
| C0025302Z | 25 | 32 | Natural | 2.2 | 1080 | ○ |
| C0030302Z | 30 | 32 | Green | 1.8 | 1510 | ○ |
| C0035302Z | 35 | 32 | Blue Green | 1.6 | 2280 | ○ |
| C0040302Z | 40 | 32 | Amber | 1.2 | 3310 | ○ |
