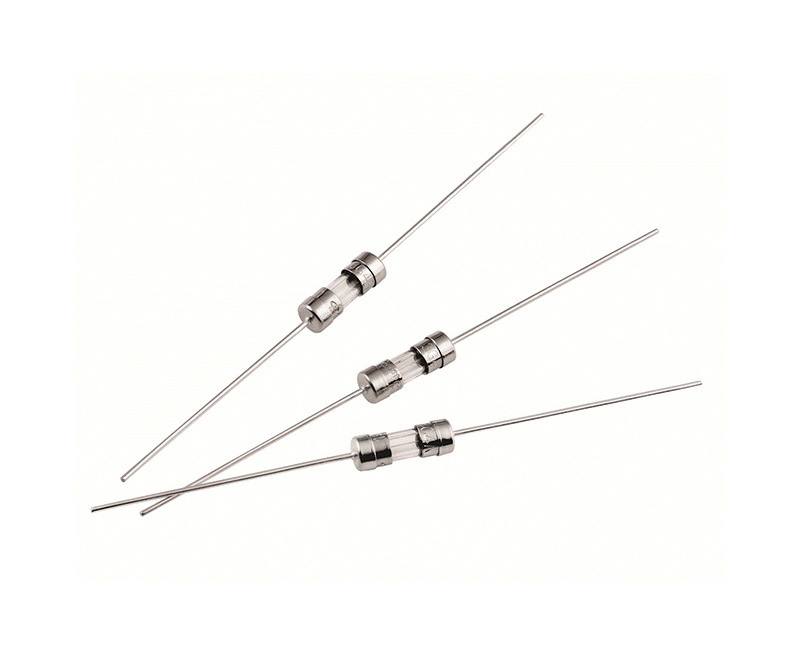

3G_Cartridge Fuses_Fuse_Products_XC Electronics(Shenzhen)Corp.,LTD

Breaking Capacity

Material

Operating Temperature

Soldering conditions

50A at 125V/250 AC (200mA-6.3A)

Fuse body - glass tube

End cap--nickel plated brass

Pigtail--tin plated copper on nickel plated brass cap

-40°C~+125°C

Wave solder: 260°C, ≤5S

Hand solder: 360°C, ≤1S

Current Rating	Voltage Rating	Norminal Melting I²T(A²sec) For Reference	Approvals
Current Rating	Voltage Rating	Norminal Melting I²T(A²sec) For Reference
200mA	125V/250V	0.043	●
250mA	125V/250V	0.068	●
300mA	125V/250V	0.097	●
315mA	125V/250V	0.109	●
350mA	125V/250V	0.135	●
400mA	125V/250V	0.181	●
500mA	125V/250V	50.275	●
600mA	125V/250V	0.398	●
630mA	125V/250V	0.437	●
750mA	125V/250V	0.621	●
800mA	125V/250V	0.708	●
1A	125V/250V	1.107	●
1.25A	125V/250V	1.892	●
1.5A	125V/250V	2.449	●
1.6A	125V/250V	2.786	●
2A	125V/250V	3.716	●
2.5	125V/250V	6.636	●
3A	125V/250V	9.967	●
3.15A	125V/250V	11.52	●
3.5A	125V/250V	14.22	●
4A	125V/250V	18.58	●
5A	125V/250V	19.04	●
6A	125V/250V	22.98	●
6.3A	125V/250V	35.99	●
