3T_Cartridge Fuses_Fuse_Products_XC Electronics(Shenzhen)Corp.,LTD

Breaking Capacity

Material

Operating Temperature

Soldering conditions

VDE 35A or 10ln whichever is greater(250mA-6.3A)

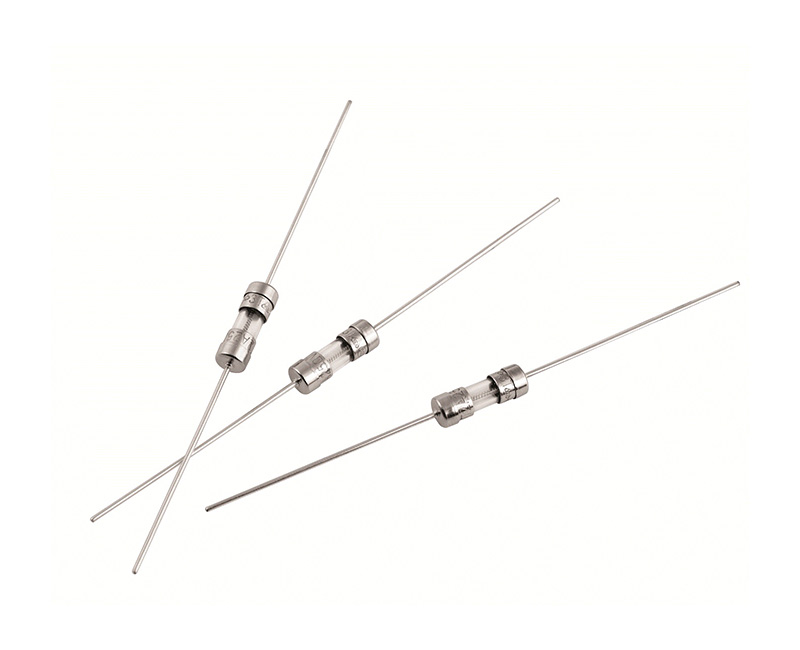

Fuse body - glass tube

End cap--nickelplated brass

Pigtail--tin plated copper on nickel plated brass cap

-40°C~+125°C

Wave solder: 260°C, ≤5S

Hand solder: 360°C, <1S

UL 50A at 125V/250V AC(250mA-10A)

Current Rating	Voltage Rating	Norminal Melting I²T(A²sec) For Reference	Approvals
Current Rating	Voltage Rating	Norminal Melting I²T(A²sec) For Reference
250mA	125V/250V	0.27	●	●	●		●
300mA	125V/250V	0.29			●
315mA	125V/250V	0.30	●	●	●		●
350mA	125V/250V	0.32			●
400mA	125V/250V	0.48			●
500mA	125V/250V	0.45	●	●	●		●
600mA	125V/250V	0.48			●
630mA	125V/250V	0.50	●	●	●		●
750mA	125V/250V	0.51			●
800mA	125V/250V	1.6	●	●	●		●
1A	125V/250V	4.2	●	●	●	●	●
1.25A	125V/250V	4.5	●	●	●	●	●
1.5A	125V/250V	4.9			●	●
1.6A	125V/250V	7.2	●	●	●	●	●
2A	125V/250V	12	●	●	●	●	●
2.5A	125V/250V	13	●	●	●	●	●
3A	125V/250V	13			●	●
3.15A	125V/250V	28	●	●	●	●	●
3.5A	125V/250V	30			●	●
4A	125V/250V	50	●	●	●	●	●
5A	125V/250V	80	●	●	●	●	●
6A	125V/250V	82			●
6.3A	125V/250V	127	●	●	●		●
7A	125V/250V	108			●
8A	125V/250V	125	○	○	●		○
10A	125V/250V	180	○	○	●		○
