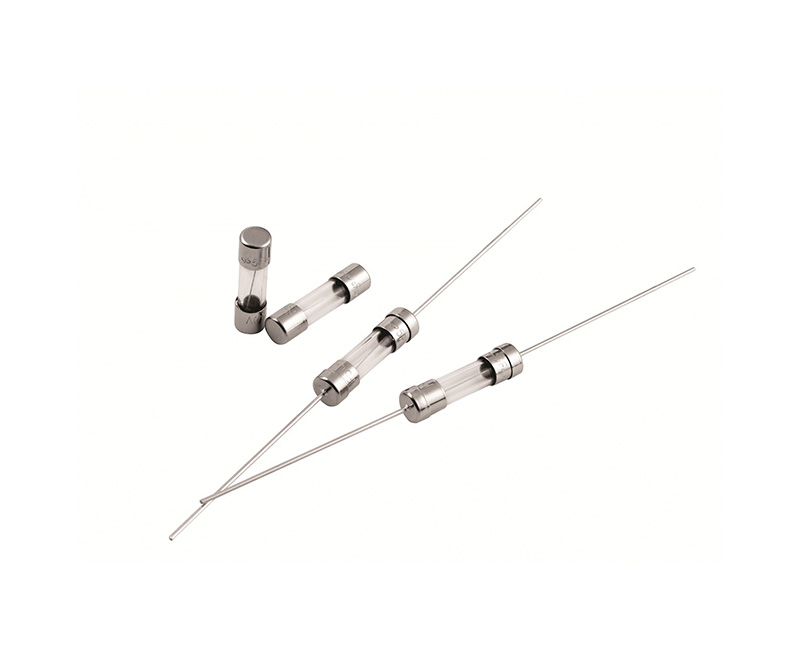

5F_Cartridge Fuses_Fuse_Products_XC Electronics(Shenzhen)Corp.,LTD

Breaking Capacity

Material

Operating Temperature

Soldering conditions

35A or 10ln whichever is greater

Fuse body - glass tube

End cap--nickelplated brass

Pigtail--tin plated copper on nickel plated brass cap

-40°C~+125°C

Wave solder: 260C, ≤5S

Hand solder: 360C, <1S

Current Rating	Voltage Rating	Norminal Melting I²T(A²sec) For Reference	Approvals
Current Rating	Voltage Rating	Norminal Melting I²T(A²sec) For Reference
250mA	250V	0.144	●	●		●	●	●	○
315mA	250V	0.299	●	●		●	●	●	○
400mA	250V	0.369		●		●	●	●	○
500mA	250V	0.676	●	●		●	●	●	○
630mA	250V	1.074	●	●		●	●	●	○
800mA	250V	1.732	●	●		●	●	●	○
1A	250V	2.705	●	●		●	●	●	○
1.25A	250V	4.144	●	●		●	●	●	○
1.6A	250V	6.928	●	●		●	●	●	○
2A	250V	13.79	●	●		●	●	●	○
2.5A	250V	23.01	●	●		●	●	●	○
3.15A	250V	35.46	●	●		●	●	●	○
4A	250V	55.61	●	●		●	●	●	○
5A	250V	98.58	●	●		●	●	●	○
6.3A	250V	163.56	●	●		●		●	○
8A	250V	243.84	●		●	●		●	○
10A	250V	377.75	●		●	●		●	○
12.5A	250V	591.73	●		●	●			○
16A	250V	967.49	●		●	●			○
20A	250V	1560.6				●			○
