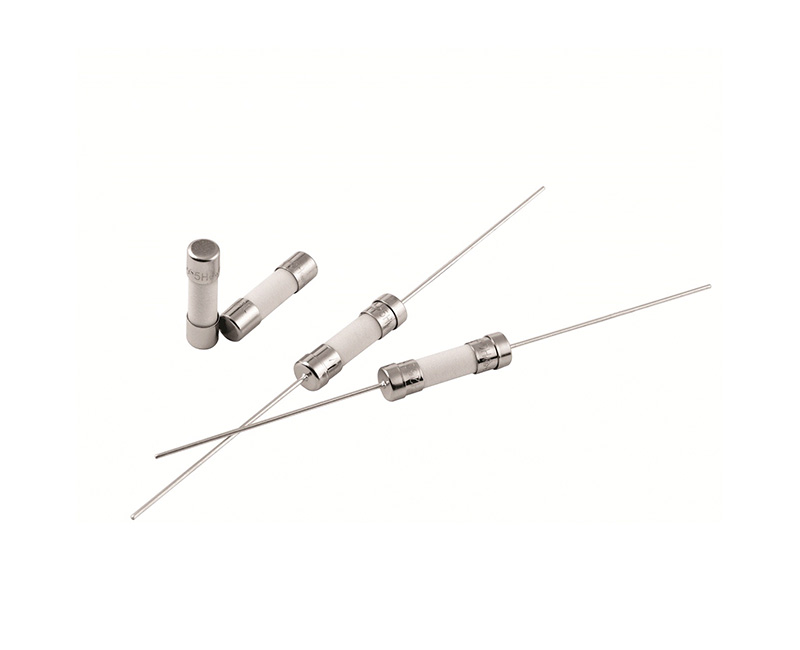

5H_Cartridge Fuses_Fuse_Products_XC Electronics(Shenzhen)Corp.,LTD

Breaking Capacity

Material

Operating Temperature

Soldering conditions

1500A at 250V AC(1A-20A)

Fuse body - ceramic tube

End cap--nickelplated brass

Pigtail--tin plated copper on nickel plated brass cap

-40°C~+125°C

Wave solder: 260°C, ≤5S

Hand solder: 360°C, ≤1S

Current Rating	Voltage Rating	Norminal Melting I²T(A²sec) For Reference	Approvals
Current Rating	Voltage Rating	Norminal Melting I²T(A²sec) For Reference
250mA	250V	0.047	●			●			○
315mA	250V	0.075	●			●			○
400mA	250V	0.121	●			●			○
500mA	250V	0.212	●			●			○
630mA	250V	0.336	●			●			○
800mA	250V	1.425	●			●			○
1A	250V	2.227	●	●		●	●	●	○
1.25A	250V	2.888	●	●		●	●	●	○
1.6A	250V	4.547	●	●		●	●	●	○
2A	250V	8.855	●	●		●	●	●	○
2.5A	250V	14.81	●	●		●	●	●	○
3.15A	250V	32.22	●	●		●	●	●	○
4A	250V	45.22	●	●		●	●	●	○
5A	250V	79.89	●	●		●	●	●	○
6.3A	250V	120.18	●	●		●	●	●	○
8A	250V	165.53	●	●		●	●	●	○
10A	250V	268.91	●	●		●	●	●	○
12A	250V	400.25				●			●
12.5A	250V	420.16	○		●	●	●	○	●
15A	250V	707.42				●	●	○	●
16A	250V	963.31	○		●	●	●	○	●
20A	250V	1579.05	○		●	●	●	○	●
