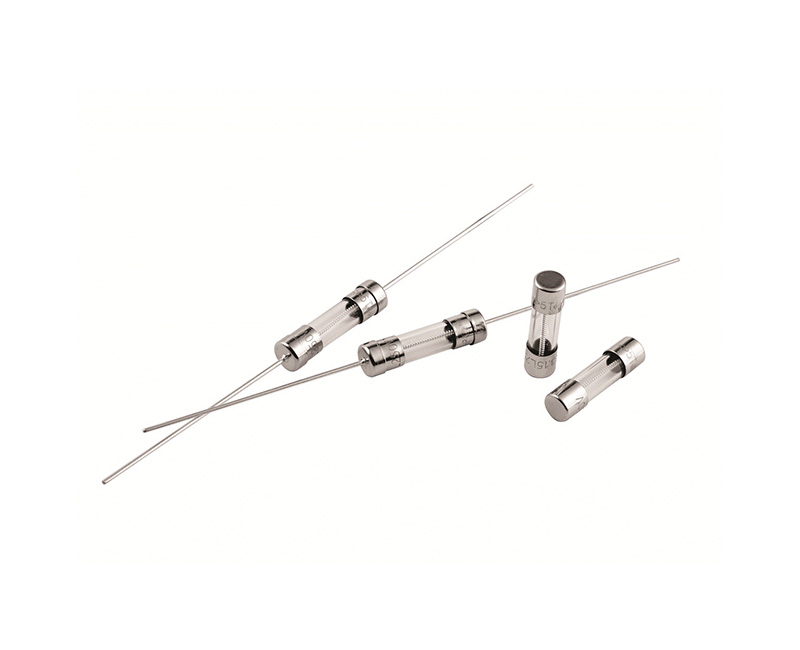

5T_Cartridge Fuses_Fuse_Products_XC Electronics(Shenzhen)Corp.,LTD

Breaking Capacity

Material

Operating Temperature

Soldering conditions

35A or 10ln whichever is greater

Fuse body - glass tube

End cap--nickelplated brass

Pigtail--tin plated copper on nickel plated brass cap

-40°C~+125°C

Wave solder: 260C, ≤5S

Hand solder: 360C, <1S

Current Rating	Voltage Rating	Norminal Melting I²T(A²sec) For Reference	Approvals
Current Rating	Voltage Rating	Norminal Melting I²T(A²sec) For Reference
250mA	250V	0.20	●	●		●	●	●	○
315mA	250V	0.32	●	●		●	●	●	○
400mA	250V	0.52	●	●		●	●	●	○
500mA	250V	0.80	●	●		●	●	●	○
630mA	250V	1.2	●	●		●	●	●	○
800mA	250V	2.1	●	●		●	●	●	○
1A	250V	3.2	●	●		●	●	●	○
1.25A	250V	5.0	●	●		●	●	●	○
1.6A	250V	8.2	●	●		●	●	●	○
2A	250V	12.8	●	●		●	●	●	○
2.5A	250V	20	●	●		●	●	●	○
3.15A	250V	31.8	●	●		●	●	●	○
4A	250V	51.2	●	●		●	●	●	○
5A	250V	80	●	●		●	●	●	○
6.3A	250V	127	●	●		●		●	○
8A	250V	205	●		●	●		●	○
10A	250V	320	●		●	●		●	○
12.5A	250V	500			●	●			○
16A	250V	750			●	●			○
20A	250V	890				●			○
