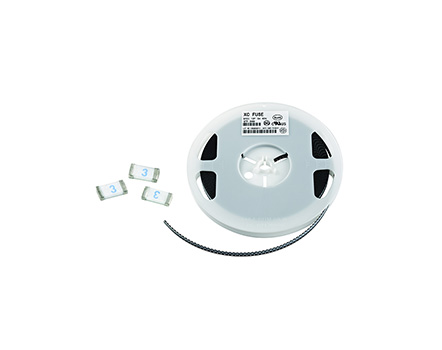

　　Disposable fuses can be divided into fast fuse and slow fuse according to their melting speed, with a volume of 0402, 0603120621400456 and more. Today we will have a detailed understanding of the specifications and parameters of the 1206 volume 1A disposable quick fuse.

　　The corresponding brand model for the 1206 volume 1A one-time quick break fuse is 12061100FS, with silk screen printed as H. JF is a JDT FUSE brand fuse, C is a ceramic body, 1206 is volume, and 1100 is a four digit current: 1A, F is a Fast Acting quick break, and S is an SMD chip type. The rated current is 1A, and the rated voltage can reach 24V, 32V, 63V, and 72V. Segmentation ability can be achieved 50A@272V , 50A@63V , 50A@32V , 300A@24V .

　　The size specifications of the 1206 volume 1A disposable quick fuse are 3.2 ± 0.2mm in length, 1.6 ± 0.2mm in width, and 0.6 ± 0.2mm in thickness. The fusing characteristics of this model of fuse are: when the current is 1 times the fusing current value, the minimum fusing speed of the fuse is 4 hours, and when the current is 2.5 times the fusing current, the maximum fusing speed of the fuse is 5 seconds.

　　In terms of performance, this model has set industry standards in terms of reliability and quality. The solderless design provides excellent switching and temperature cycling characteristics during use, and makes our SMD fuses more heat-resistant and impact-resistant than typical subminiature fuses. This model of blown fuse quickly interrupts the overcurrent protection circuit; Compatible with both reflow soldering and wave soldering methods; This fuse is made of ceramic and glass structure. Disposable fuse, lead-free and halogen-free material. The normal working temperature of this material is -55 ℃~+125 ℃.
