Chip fuse specifications | price

01

2023-11

Share:

　　65c6c49caf393eb

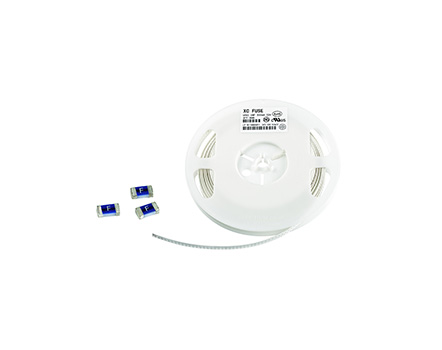

　　SMD fuse specifications | price - SMD fuses can be divided into SMD disposable fuses and SMD self recovery fuses. Among them, the specifications of patch disposable fuses include series 060312062410 fuses, and the specifications and dimensions of patch self recovery fuses include series 0603, 0805, 1206, 1210, 1812, 2920, etc.

　　The price of SMD fuses varies depending on the type. The latest quotation for SMD fuses in the market is around a few cents, with wholesale prices. Good quality products can be sold for around one yuan. There are differences in prices between suppliers and traders, so when searching for products in bulk, it is more advantageous to find manufacturers and suppliers.

　　Chip fuse specification | price - The fuse must be a fusible metal wire in order to fuse in a timely manner and provide protection when the current is high. The fuse material is mainly made of low melting point alloys such as aluminum antimony alloy.

　　There are four basic forms of patch fuses: slow fuse/time delay fuse, dual alloy slow fuse, fast response fuse, and extra fast response fuse. In general, different fuse types will be selected based on the specific requirements of the product.

　　Chip fuse specification | price - adopts overcurrent protection technology, greatly enhancing its own working characteristics. Moreover, it has a small size and is suitable for communication, home, and other fields. It adopts the replacement method of inserting chips, which is simple to operate and can be installed or replaced by one person. It is a professional mid to high end current fuse. Its products can be widely used in fields such as household appliances, batteries, IT, etc
