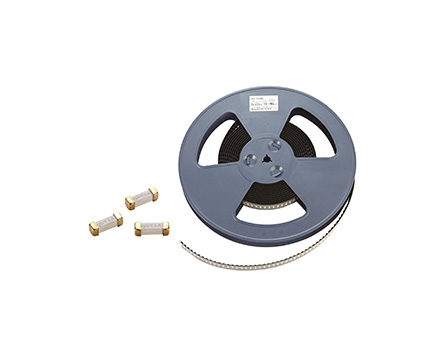

　　Disposable fuses belong to patch type fuses. Disposable fuses can be divided into two types based on their fusing speed: fast fusing fuses and slow fusing fuses. The commonly used series of disposable fuses in Shenzhen include 0402FS/TS, 0456FS/TS, 0603FS/TS, 1206FS/TS, and 2410FS/TS. Today we will have a detailed understanding of the detailed specifications and parameters of the 2410TS series of slow melting fuses.

　　The current range of the 2410TS series disposable fuse is 0.1A~30A, corresponding to models 2410-0100TS, 2410-0250TS, 2410-0500TS, 2410-0750TS, 2410-1100TS, 2410-1150TS, 2410-2200TS, 2410-2250TS, 2410-1300TS, 2410-1315TS, 2410-1350TS, 2410-1400TS, 2410-1500TS, 2410-1600TS, 2410-1630TS, 2410-1700TS, 2410-1800TS, 2410-2100TS, 2410-2120TS, 2410-2150TS, 2410-2200TS, 2410-2250TS https://www.primacabinets.com/products/ 2410-2300TS. The maximum voltage for commonly used specification parameters is 0.01A~10A, with a maximum voltage of 250V and a segmented capacity of 50A@250V ; The maximum voltage of 12A~15A is 125V, and the segmented capacity is 100A @ 125V; The maximum voltage between 20A and 30A is 72V, and the segmented capacity is 500A @ 72V. The fuse size specifications for this series are: length: 6.1 ± 0.2mm, width and height: 2.5 ± 0.1mm. The recommended pad layout dimensions are: length: 8.0 ± 0.3mm, width: 3.0 ± 0.3m.

　　Detailed analysis of the segmented ability of the 2410TS series one-time fuse: When the circuit current is the rated current of the fuse, the fuse can maintain no action for at least 4 hours; When the current of the circuit is twice that of the fuse, the fuse will act within 120s, thereby protecting the board; When the current of the circuit is 10 times the rated current of the fuse, the fuse will operate within 10mS, thereby protecting other components of the board from damage. The normal operating temperature range of this series of fuses is -55 ℃~+125 ℃.

　　2410TS series disposable fuse detailed production materials: the hat material at both ends of the fuse is gold-plated brass cover, the fuse body is opaque square ceramic tube, and the fuse wire is copper silver alloy wire.
