　　PPTC self recovery fuse is an overcurrent protection component that can automatically reset. It is made by adding conductive particle materials to a polymer organic polymer under high pressure, high temperature, and vulcanization reaction conditions, and processed through a special process.

　　The PPTC self recovery fuse plug-in packaging series is divided into A6 (6V), A16 (16V), A30 (30V), A60 (60V), A72 (72V), A120 (120V), A240 (240V), A250 (250V), A600 (600V) series, which are distinguished by different withstand voltage values.

　　Product features:

　　After circuit obstacles are eliminated, the fuse automatically recovers without the need for manual replacement. It can be reused and reduces costs.

　　Fast action time and recovery time increase reliability.

　　Safety certification: UL, compliant with ROHS certification.

　　The PPTC self recovery fuse of the plug-in has higher voltage and greater current than the patch, better meeting customer needs.

　　Application:

　　Line protection, power output, electronic control templates, remote control, engineering and industrial control, safety and fire alarm systems, testing and measurement equipment, satellite receivers, telephones, game consoles, modems, battery packs, printers, fax machines, and more.

Read recommendations:

ksd301 thermostat

adjustable bimetal thermostat switch

Appearance size of fuse

Principle and characteristics of self recovering fuses

PREVIOUS:Self recovery fuse for overcurrent protection on industrial control motherboard.air conditioner fuses near me

Return

Next：The difference between glass tube and ceramic tube fuses.slow blow fuse vs time delay

Related News

April 10,2023

Fuseless car charger, carefully burn your phone

Many users have told me about buying printers, but when asked which one they want to buy, they can't tell. Before purchasing a printer

August 08,2023

Fuse selection.mini fuse voltage drop chart

　　　　Choose Fuse Type　　Choose Standard [UL, IEC...]　　Choose Voltage Rating [AC or DC]　　Calculate Rated Current　　Choose Interrupting Rating [Breaking Capacity]　　Current Derating　　Advisor In rush Characteristic ² T]　　Consultant Pulse Factor [Fp]　　1、 Choose Fuse Type　　The first step in selecting a fuse is to determine the type and size required. Common structures and sizes include the following:　　1. Tubular type: glass or ceramic tube body, with a general size of 3.6x10mm 5x15mm 5x20 6.3x32mm;　　2. Plastic shell type: PA66 shell, small in size, woven with machine insertion, generally 8.5x8mm 8.5x7.6mm in size;　　3. Epoxy resin type: ceramic tube body, surface sealing resin, micro type, woven machine insert, size: 3x7mm;　　4. Surface mount: suitable for high-density circuit boards, with dimensions of 0402 0603 1206 6125 1032;　　5. Automotive fuses: generally used in conjunction with terminals or boxes, specifically for use in automotive or low-voltage, high current systems;　　2、 Choose Standard　

August 26,2023

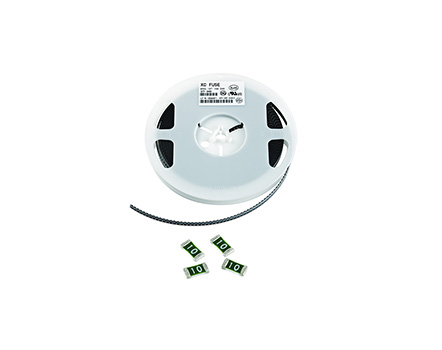

Specification and size of patch fuse.tube amp blowing main fuse
