　　1. Filamentous. Early primitive fuses were directly locked with screws and used for various sizes of old-fashioned switches and sockets.

　　2. Flaky (bare flake). More convenient to use than traditional filiform.

　　3. Glass tube shaped. There are several different sizes, commonly found in electronic products.

　　6.3 x 32 mm (diameter x length)

　　5 x 20 mm

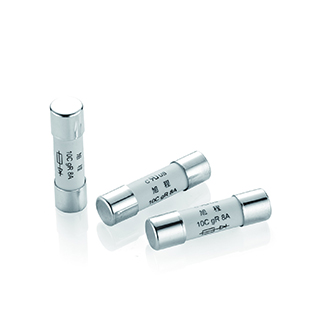

　　4. Ceramic tubular. There are several different shapes and sizes to avoid glass bursting.

　　5. Plastic sheet with metal sheet connector: automotive fuse.

　　6. Surface mounted component (SMD) type.

　　7. Cylindrical, plug-in type: directly soldered onto the circuit board, used internally in the product.
