Parameters and characteristics of commonly used 40A disposable fuse.tv keeps blowing fuse

16

2023-08

Share:

　　367c88da8940e5c

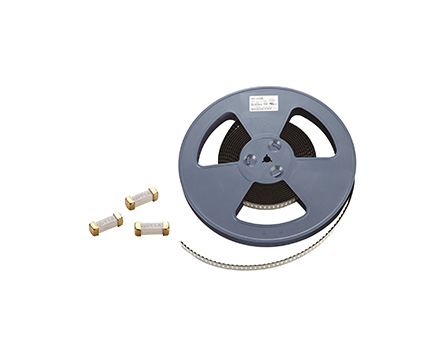

　　The segmented capacity of the 1206 series 40A disposable fuse is as follows. When the current passing through the fuse is 40A, the fuse can maintain internal fusing for at least 4 hours. However, when the current passing through the fuse is 3.5 times the rated current, which is 140A, the fuse will fuse within 5 seconds, thereby protecting the board. The size specification of this part number is: 3.2mm * 1.6mm, with a thickness of 0.75mm

　　The 1206 series 40A disposable fuse has set industry standards in terms of performance, reliability, and quality. The solderless design provides excellent switching and temperature cycling characteristics during use, and enables our SMD fuses to have higher heat resistance and impact resistance than other subminiature fuses.

　　The main characteristics of the 1206 series 40A disposable fuse include: ① rapid fusing; ② Reflow soldering and wave soldering are compatible; ③ Ceramic and glass structures; ④ It belongs to the disposable fuse type; ⑤ Lead free and halogen-free materials. The normal operating temperature range for this part number is -55 ℃~+125 ℃.

　　The welding methods for 40A disposable fuse include wave soldering and reflow soldering. The temperature requirement for wave soldering is 260 degrees Celsius, and the time cannot exceed 10 seconds; The temperature requirement for reflow soldering is 260 ℃, and the time cannot exceed 30 seconds.
