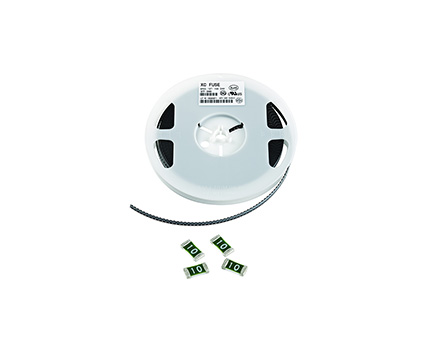

　　The series models with a rated current of 0.5A in SMD fuses include ASMD0603-050, ASMD0805-050, ASMD1206-050, ASMD1210-050, ASMD1812-050, and ASMD2920-050. When selecting 0.5A patch recoverable insurance, in addition to considering the current, we also need to consider the voltage in the circuit. The maximum voltages for the above models in order are: 6V, 6V, 13.2V, 15V, and 60V. In addition to considering the voltage and current parameters, we also need to consider the requirements of the board for the fuse packaging size. The size of the 0603 is 1.6mm * 0.8mm, the size of the 0805 is 2.0mm * 1.2mm, the size of the 1206 is 3.2mm * 1.6mm, the size of the 1210 is 3.2mm * 2.5mm, and the size of the 2920 is 7.5mm * 5.5mm.

　　0.5A circuit patch fuse selection, with a protective current of 1A, can restore the operating temperature range of the fuse to -40 ℃~+85 ℃ for patches above 0.5A. Usually, we use reflow soldering, which is mainly used for surface mounted boards, that is, for chip fuse welding. The process is relatively complex and can be divided into single sided mounting and double sided mounting.
