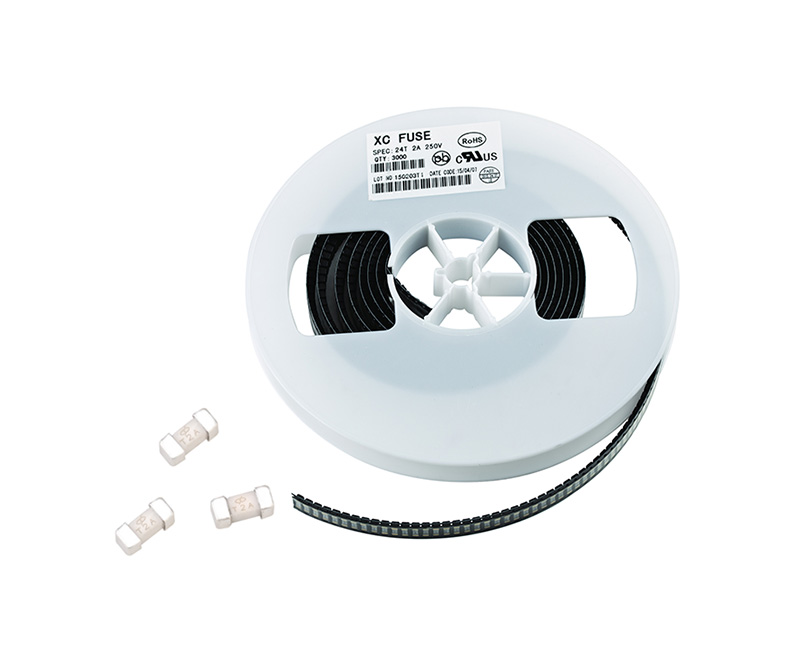

24F_SMD Fuses_Fuse_Products_XC Electronics(Shenzhen)Corp.,LTD

Breaking Capacity	Material	Operating Temperature	Soldering conditions
UL 50A at 125V/250V AC(250mA-10A)	Fuse body -- ceramic tube End -- Silver plated brass	-40°C~+125°C	Wave solder: 260°C, ≤ 5s Hand solder: 360°C, ≤1s
UL 50A at 125V DC(250mA-10A)
UL 25A at 250V DC(250mA-10A)
VDE 100A at 250V DC(250mA-6.3A)

Current Rating	Voltage Rating	Norminal Melting I²T(A²sec) For Reference	Approvals
Current Rating	Voltage Rating	Norminal Melting I²T(A²sec) For Reference
250mA	125V/250V	0.041	○	●	●	●	○	●
300mA	125V/250V	0.052				●	○
315mA	125V/250V	0.060	○	●	●	●	○	●
350mA	125V/250V	0.079				●	○
400mA	125V/250V	0.137	○	●	●	●	○	●
500mA	125V/250V	0.211	○	●	●	●	○	●
600mA	125V/250V	0.362				●	○
630mA	125V/250V	0.392	○	●	●	●	○	●
750mA	125V/250V	0.609				●	○
800mA	125V/250V	0.804	○	●	●	●	○	●
1A	125V/250V	1.212	○	●	●	●	○	●
1.25A	125V/250V	1.615	○	●	●	●	○	●
1.5A	125V/250V	2.191				●	○
1.6A	125V/250V	2.808	○	●	●	●	○	●
2A	125V/250V	4.387	○	●	●	●	○	●
2.5A	125V/250V	6.825	○	●	●	●	○	●
3A	125V/250V	9.641				●	○
3.15A	125V/250V	10.43	○	●	●	●	○	●
4A	125V/250V	16.81	○	●	●	●	○	●
5A	125V/250V	22.81	○	●	●	●	○	●
6A	125V/250V	32.36				●	○
6.3A	125V/250V	37.07	○	●	●	●	○	●
7A	125V/250V	49.98				●	○
8A	125V/250V	68.05	○	○	○	●	○	○
10A	125V/250V	87.16	○	○	○	●	○	○
12A	125V/250V	90.00	○	○	○	○	○	○
15A	125V/250V	110.16	○	○	○	○	○	○
20A	125V/250V	163.36	○	○	○	○	○	○
