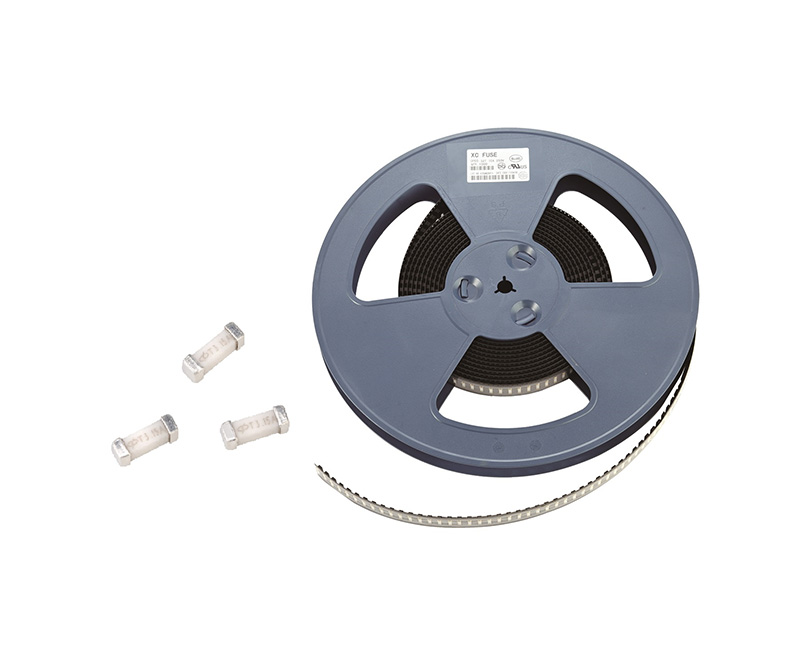

32T_SMD Fuses_Fuse_Products_XC Electronics(Shenzhen)Corp.,LTD

Breaking Capacity

Material

Operating Temperature

Soldering conditions

50A at 125V/250V AC(250mA-10A)

Fuse body -- ceramic tube

End cap -- Silver plated brass

-40°C~+125°C

Wave solder: 260°C, ≤5s

Hand solder: 360°C, ≤1s

50A at 125V/250V DC(250mA-10A)

Current Rating	Voltage Rating	Norminal Melting I²T(A²sec) For Reference	Approvals
Current Rating	Voltage Rating	Norminal Melting I²T(A²sec) For Reference
250mA	125V/250V	0.039	○	○	●	○	○	○
300mA	125V/250V	0.048			●	○		○
315mA	125V/250V	0.055	○	○	●	○	○	○
350mA	125V/250V	0.061			●	○		○
400mA	125V/250V	0.083	○	○	●	○	○	○
500mA	125V/250V	0.154	○	○	●	○	○	○
630mA	125V/250V	0.257	○	○	●	○	○	○
750mA	125V/250V	0.348			●	○		○
800mA	125V/250V	0.409	○	○	●	○	○	○
1A	125V/250V	0.619	○	○	●	○	○	○
1.25A	125V/250V	1.012	○	○	●	○	○	○
1.5A	125V/250V	1.459			●	○		○
1.6A	125V/250V	1.661	○	○	●	○	○	○
2A	125V/250V	4.831	○	○	●	○	○	○
2.5A	125V/250V	7.493	○	○	●	○	○	○
3A	125V/250V	8.408			●	○		○
3.15A	125V/250V	8.477	○	○	●	○	○	○
4A	125V/250V	29.51	○	○	●	○	○	○
5A	125V/250V	60.08	○	○	●	○	○	○
6A	125V/250V	97.41			●	○		○
6.3A	125V/250V	108.23	○	○	●	○	○	○
7A	125V/250V	176.20			●	○		○
8A	125V/250V	255.96	○	○	●	○	○	○
10A	125V/250V	418.42	○	○	●	○	○	○
